English Tapered roller bearings are consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring):
14138A - 14276 bearings :
Cone Part Number:14138A
Cup Part Number 14276
| Quantity: | |
|---|---|

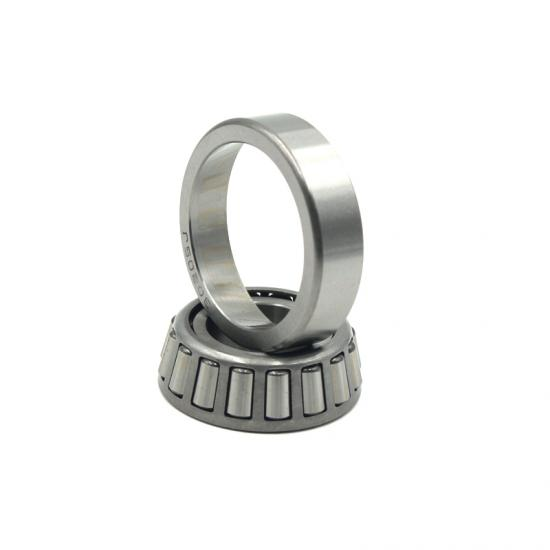

14138A-14276 Taper Roller Bearing
KOYO
Taper roller Bearing Introduction :
Tapered Roller Bearings are consist with four parts - the cone (consisting of the inner ring and roller cage assembly) and the cup (outer ring),the tapered rollers (rolling elements) and the cage (roller retainer)
Taper roller bearings number is comprised of the "Cone Reference / Cup Reference". These two parts can be mounted separately.
Compatible cone:
HM88630, HM88644, HM88648, HM88649, HM88649A
Application :
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.
Working with Us have below advantage:
1.Free Sample bearing
2.ISO Standard
3.In Stock bearing
4. Bearing Small order accepted
5.OEM bearing service
6. Professional:rich experience manufacture bearing
7.Customized bearing, Customer’s bearing drawing or samples accepted
8. Competitive price for different
9. TT Payment or Western Union
Dimension :
| Weight , W | 0.32kg |
| Inner diameter , d | 34.925mm |
| Outer diameter , D | 69.012mm |
| Total width , T | 19.845mm |
| Cage width , C | 15.88mm |
| Inner diameter in inches , d | 1.375 inch |
| Outer diameter in inches , D | 2.717inch |
| Total width in inches , T | 0.7813inch |
| Inner cage width in mm , B | 19.58mm |
14138A/14276 Tapered Roller Bearings Can Used For :
Baler John Deere
Combine harvester John Deere
Tractor John Deere
Taper roller Bearing Introduction :
Tapered Roller Bearings are consist with four parts - the cone (consisting of the inner ring and roller cage assembly) and the cup (outer ring),the tapered rollers (rolling elements) and the cage (roller retainer)
Taper roller bearings number is comprised of the "Cone Reference / Cup Reference". These two parts can be mounted separately.
Compatible cone:
HM88630, HM88644, HM88648, HM88649, HM88649A
Application :
Aerospace, agriculture, automotive, heavy truck, cement, aggregate, coal, oil and gas, construction, gear drives, machine tools, mining, paper, metals, rail and wind.
Working with Us have below advantage:
1.Free Sample bearing
2.ISO Standard
3.In Stock bearing
4. Bearing Small order accepted
5.OEM bearing service
6. Professional:rich experience manufacture bearing
7.Customized bearing, Customer’s bearing drawing or samples accepted
8. Competitive price for different
9. TT Payment or Western Union
Dimension :
| Weight , W | 0.32kg |
| Inner diameter , d | 34.925mm |
| Outer diameter , D | 69.012mm |
| Total width , T | 19.845mm |
| Cage width , C | 15.88mm |
| Inner diameter in inches , d | 1.375 inch |
| Outer diameter in inches , D | 2.717inch |
| Total width in inches , T | 0.7813inch |
| Inner cage width in mm , B | 19.58mm |
14138A/14276 Tapered Roller Bearings Can Used For :
Baler John Deere
Combine harvester John Deere
Tractor John Deere
