English 30YM1/48Y1 Tapered Roller Motorcycle Bearings
MVPS
Bearing Specs:
No.: 38YM1/48Y1
Type: Taper Roller Bearing
Application :For motorcycle
Lubrication: Need Grease
Dimensions: 30 x 48 x 12 mm
ID (inner diameter)/Bore: 30 mm
OD (outer diameter): 48 mm
Width/Height/thickness: 12 mm
Weight: 77 g
Dynamic load :23500N
Static load :21200N

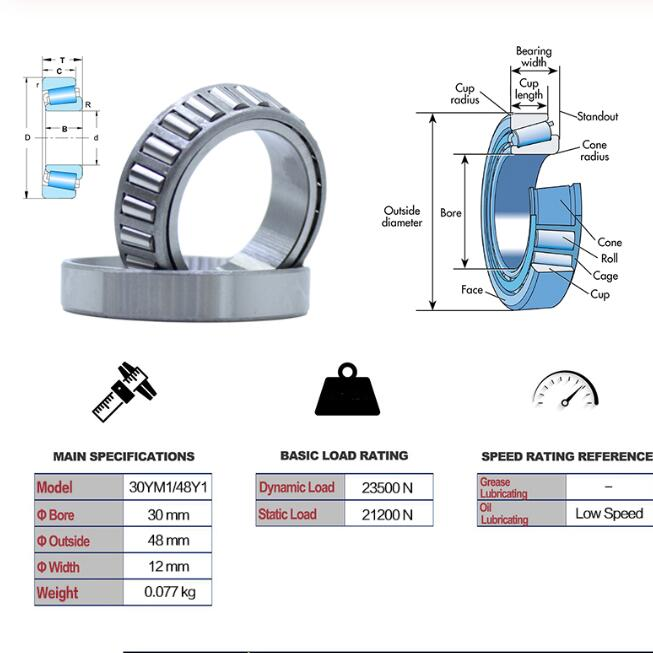

The structure of taple roller bearing :
30YM1/48Y1 Bearing Can For Motorcycle Steering-Head
We can prodive different type of taper roller bearings ,if you are interested ,pls feel free to contact with me
,here are some KOYO bearing number for your reference:

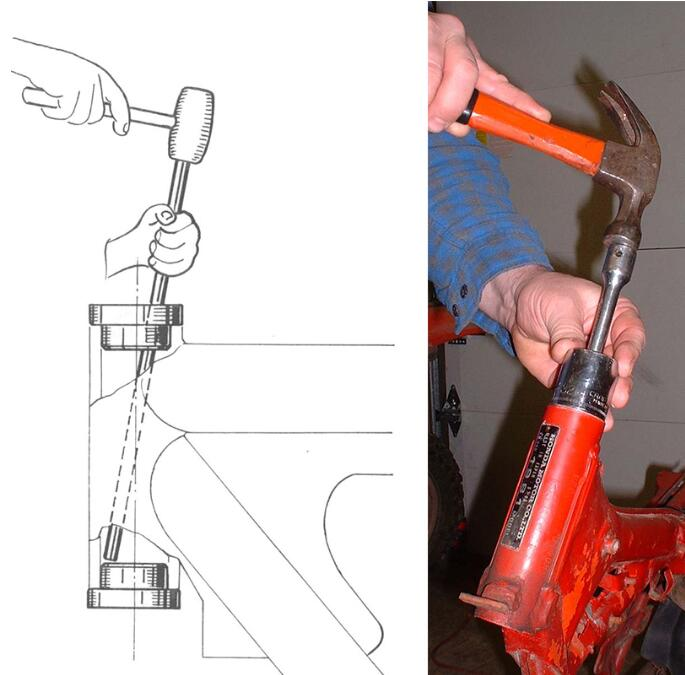

How to replace your Motorcycle Steering-Head?
1.Access the steering head bearing
2.Take off upper trpie tree
3.Pull triple tree out from bottom
4.Drive out bearing cups
5.Drive in new bearing cups
6.Remove old bearing
7.Drive in taper roller bearing
8.Grease well,assemble and adjust
| Bearing No. | Boundary dimensions(mm) | |||
| d | D | T | B | |
| 323/32R | 32 | 75 | 29.75 | 28 |
| 32907JR-2 | 35 | 55 | 14 | 14 |
| 32007JR | 35 | 62 | 18 | 18 |
| 33007JR | 35 | 62 | 21 | 21 |
| 30207CR | 35 | 72 | 18.25 | 17 |
| 30207JR | 35 | 72 | 18.25 | 17 |
| 32207-1R | 35 | 72 | 24.25 | 23 |
| 32207JR | 35 | 72 | 24.25 | 23 |
| 33207JR | 35 | 72 | 28 | 28 |
| 30307DJR | 35 | 80 | 22.75 | 21 |
| 30307XR | 35 | 80 | 22.75 | 21 |
| 30307JR-1 | 35 | 80 | 22.75 | 21 |
| TR0708-1R | 35 | 80 | 32.75 | 31 |
| 32307JR | 35 | 80 | 32.75 | 31 |
| 32908JR | 40 | 62 | 15 | 15 |
| 32008JR | 40 | 68 | 19 | 19 |
| 33008JR | 40 | 68 | 22 | 22 |
Bearing Specs:
No.: 38YM1/48Y1
Type: Taper Roller Bearing
Application :For motorcycle
Lubrication: Need Grease
Dimensions: 30 x 48 x 12 mm
ID (inner diameter)/Bore: 30 mm
OD (outer diameter): 48 mm
Width/Height/thickness: 12 mm
Weight: 77 g
Dynamic load :23500N
Static load :21200N
The structure of taple roller bearing :
30YM1/48Y1 Bearing Can For Motorcycle Steering-Head
We can prodive different type of taper roller bearings ,if you are interested ,pls feel free to contact with me
,here are some KOYO bearing number for your reference:
How to replace your Motorcycle Steering-Head?
1.Access the steering head bearing
2.Take off upper trpie tree
3.Pull triple tree out from bottom
4.Drive out bearing cups
5.Drive in new bearing cups
6.Remove old bearing
7.Drive in taper roller bearing
8.Grease well,assemble and adjust
| Bearing No. | Boundary dimensions(mm) | |||
| d | D | T | B | |
| 323/32R | 32 | 75 | 29.75 | 28 |
| 32907JR-2 | 35 | 55 | 14 | 14 |
| 32007JR | 35 | 62 | 18 | 18 |
| 33007JR | 35 | 62 | 21 | 21 |
| 30207CR | 35 | 72 | 18.25 | 17 |
| 30207JR | 35 | 72 | 18.25 | 17 |
| 32207-1R | 35 | 72 | 24.25 | 23 |
| 32207JR | 35 | 72 | 24.25 | 23 |
| 33207JR | 35 | 72 | 28 | 28 |
| 30307DJR | 35 | 80 | 22.75 | 21 |
| 30307XR | 35 | 80 | 22.75 | 21 |
| 30307JR-1 | 35 | 80 | 22.75 | 21 |
| TR0708-1R | 35 | 80 | 32.75 | 31 |
| 32307JR | 35 | 80 | 32.75 | 31 |
| 32908JR | 40 | 62 | 15 | 15 |
| 32008JR | 40 | 68 | 19 | 19 |
| 33008JR | 40 | 68 | 22 | 22 |
