Flanged Bearing F6801ZZ 12x21x5 Shielded Ball Bearings

Specification:
Model: F6801ZZ
Shielded Type: Double Shielded
Inner Race/Outer Race Material: Chrome Steel (GCr15)
Cage Material: Stamping Steel

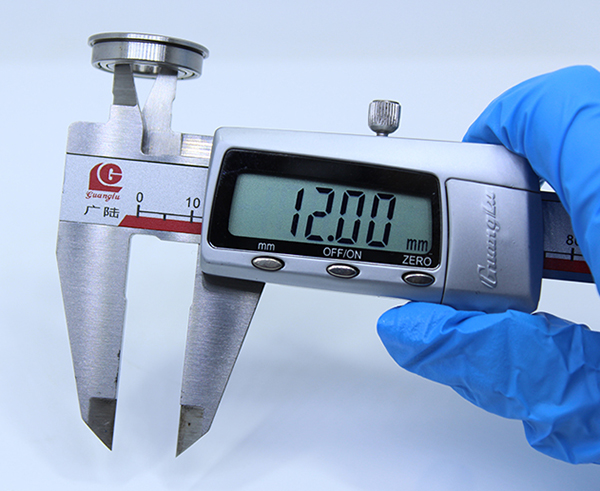

Inner Diameter (d): 12mm

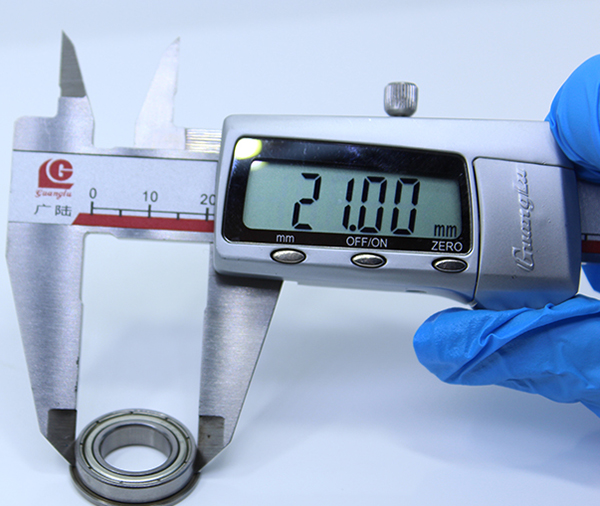

Outer Diameter (D): 21mm
Thickness (B): 5mm
Flange Dia.: 23mm
Flange Thickness: 1mm
Dynamic Load Rating (Cr): 1.9kN
Static Load Rating (Cor): 1kN
Accuracy Class: P0 (ABEC-1)
Noise Level: Z1
Number of Pack: 2 Pcs

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • NSK F6801ZZ Flanged Ball Bearings

  • NSK

F6801-2RS F6801-ZZ Thin Section Bearings Description :

Material :52100 Chrome steel,we also can produce with stainless steel .

Dimension :

Inner diameter :12mm

Outer diameter:23mm

Height :5mm

Closure: 2RS(rubber seals ) ,ZZ (Metal shield)

Basic Load Ratings:

Cr   KN = 1.915

Cor KN = 1.041

We can produce other flange bearings such as : F6800zz SF6801zz F6802zz SF6803zz F6804zz F6805zz SF6806zz F6807ZZ SF6808ZZ ,for SF type it is stainless steel flange bearing.

QQ图片20220202220015QQ图片20220202220023QQ图片20220202220030
