HK1212 Needle Roller Bearing,Description :

With Caged Drawn Cup, Outer Ring and Roller, Steel Cage, Open End

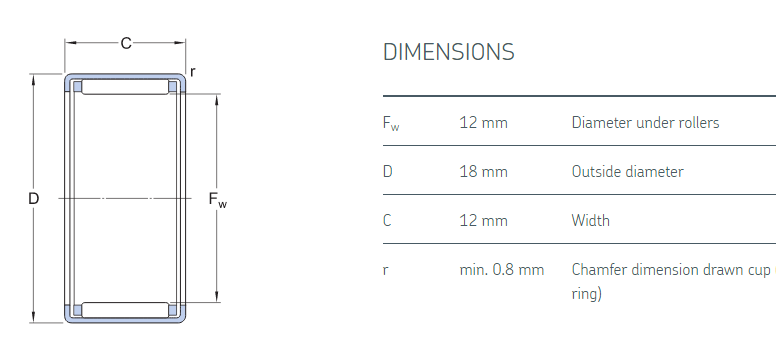

Dimensions:

Fw: 12mm

D: 18mm

C: 12mm

r min: 0.4mm

Material :Chrome steel Gcr15

Basic load ratings dynamic: 6.27kn

Basic load ratings static: 7.35kn

Fatigue load limit: 0.85kn

Speed ratings reference speed: 16000r/min

Speed ratings Limiting speed: 18000r/min

This HK1212 caged drawn cup needle roller bearing has a steel cage and is suitable for applications with high dynamic loads. It has a smaller cross-section than a machined needle roller bearing for use in restricted mounting spaces. The steel cage provides guidance and even spacing of the rollers for reduced friction, vibration, and noise when operated at high speeds. The needle rollers are made of through-hardened, high-carbon chromium steel for durability and heat tolerance, and have contoured ends to optimize the distribution of contact stress. This TLA1212Z Needle Roller Bearing is used in various applications, such as automotive and truck transmissions, agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others.
