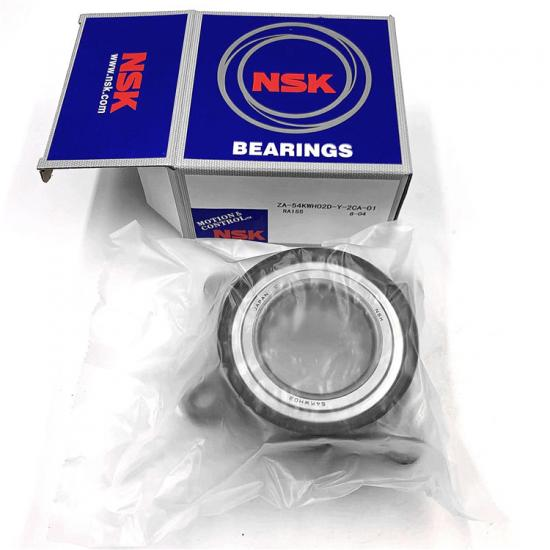

NSK Hiace Wheel Hub Bearing 54KWH02
NSK
Introduction for Wheel Hub Bearing :
The main function of the wheel hub bearing is to load and provide precise guidance for the rotation of the car hub. It can bear both axial load and radial load, so it play a important role for the components. The wheel hub bearing is developed on the basis of standard angular contact ball bearings and tapered roller bearings. It integrates two sets of bearings and has good assembly performance, can eliminate clearance adjustment, light weight, compact structure and load capacity. Large, sealed bearings can be pre-loaded with grease, omitting external hub seals and maintenance-free. They have been widely used in cars and trucks.
Bearing Intorduction :
Hiace wheel hub unit 43560-26010, 54KWH02
Specification:
Location: Front Axle
Inner Diameter: 53 mm
Outer Diameter: 90 mm
Width: 60 mm
Car model: Hiace IV Wagon
| Same Model 1 | 54KWH02 |
| Same Model 2 | VKBA7497 |
| Part Name | Automotive Wheel Bearing |
| Material | Gcr15 Chrome steel |
| Cage | Steel Cage |
| Row | Single Row |
| Dimensions(mm)(d*D*b) | 53 x 90 x 60mm |
| Weight / Mass ( KG ) | 2.2kg |
| Precision Rating | ABEC-5/ ABEC-7 |
Application of Wheel Hub Bearing :
With the development of technology, wheel hub bearing have been widely used in cars. The range and use of hub bearings are increasing, and has now reached the third generation: the first generation is DAC Series wheel hub bearing. The second generation wheel Hub Units has a flange for fixing the bearing on the outer raceway, which can be simply fixed to the axle by a nut. Make the maintenance of the car easier. The third-generation wheel Hub Units is equipped with a wheel hub bearing and an anti-lock brake system ABS. The hub wheel part is designed with an inner flange and an outer flange, the inner flange is bolted to the drive shaft, and the outer flange mounts the entire bearing together.
We have other NSK wheel bearings ,below here are some number for your reference :
| Model number | d | D | B | Mass (kg) |
| 27KWD02 | 27 | 52 | 43 | 0.41 |
| 30KWD01A | 30 | 58 | 42 | 0.5 |
| 34KWD03D | 34 | 67.8 | 40 | 0.73 |
| 35KWD02 | 35 | 60 | 30.4 | 0.38 |
| 37KWD01 | 37 | 74 | 45 | 0.84 |
| 38KWD01A | 38 | 64 | 37 | 0.46 |
| 38KWD02 | 38 | 68 | 37 | 0.56 |
| 38KWD04A | 38 | 76 | 40 | 0.94 |
| 39KWD02 | 38.993 | 72.011 | 37 | 0.63 |
| 42KWD02A | 42 | 72 | 38 | 0.58 |
| 42KWD02D | 42 | 72 | 38 | 0.58 |
| 42KWD08 | 42 | 80 | 38 | 0.82 |
| 43KWD02 | 43 | 76 | 40 | 0.82 |
| 43KWD04 | 43 | 77 | 38 | 0.81 |
| 45KWD04 | 45 | 77 | 50 | 0.89 |
| 45KWD03 | 45 | 78 | 37 | 0.73 |
| 45KWD05 | 45 | 80 | 50 | 1.02 |
| 46KWD04 | 46 | 77 | 41 | 0.84 |
| 46KWD03 | 46 | 78 | 49 | 0.97 |
| EP47KWD01 | 47 | 82 | 57.5 | 1.1 |
Introduction for Wheel Hub Bearing :
The main function of the wheel hub bearing is to load and provide precise guidance for the rotation of the car hub. It can bear both axial load and radial load, so it play a important role for the components. The wheel hub bearing is developed on the basis of standard angular contact ball bearings and tapered roller bearings. It integrates two sets of bearings and has good assembly performance, can eliminate clearance adjustment, light weight, compact structure and load capacity. Large, sealed bearings can be pre-loaded with grease, omitting external hub seals and maintenance-free. They have been widely used in cars and trucks.
Bearing Intorduction :
Hiace wheel hub unit 43560-26010, 54KWH02
Specification:
Location: Front Axle
Inner Diameter: 53 mm
Outer Diameter: 90 mm
Width: 60 mm
Car model: Hiace IV Wagon
| Same Model 1 | 54KWH02 |
| Same Model 2 | VKBA7497 |
| Part Name | Automotive Wheel Bearing |
| Material | Gcr15 Chrome steel |
| Cage | Steel Cage |
| Row | Single Row |
| Dimensions(mm)(d*D*b) | 53 x 90 x 60mm |
| Weight / Mass ( KG ) | 2.2kg |
| Precision Rating | ABEC-5/ ABEC-7 |
Application of Wheel Hub Bearing :
With the development of technology, wheel hub bearing have been widely used in cars. The range and use of hub bearings are increasing, and has now reached the third generation: the first generation is DAC Series wheel hub bearing. The second generation wheel Hub Units has a flange for fixing the bearing on the outer raceway, which can be simply fixed to the axle by a nut. Make the maintenance of the car easier. The third-generation wheel Hub Units is equipped with a wheel hub bearing and an anti-lock brake system ABS. The hub wheel part is designed with an inner flange and an outer flange, the inner flange is bolted to the drive shaft, and the outer flange mounts the entire bearing together.
We have other NSK wheel bearings ,below here are some number for your reference :
| Model number | d | D | B | Mass (kg) |
| 27KWD02 | 27 | 52 | 43 | 0.41 |
| 30KWD01A | 30 | 58 | 42 | 0.5 |
| 34KWD03D | 34 | 67.8 | 40 | 0.73 |
| 35KWD02 | 35 | 60 | 30.4 | 0.38 |
| 37KWD01 | 37 | 74 | 45 | 0.84 |
| 38KWD01A | 38 | 64 | 37 | 0.46 |
| 38KWD02 | 38 | 68 | 37 | 0.56 |
| 38KWD04A | 38 | 76 | 40 | 0.94 |
| 39KWD02 | 38.993 | 72.011 | 37 | 0.63 |
| 42KWD02A | 42 | 72 | 38 | 0.58 |
| 42KWD02D | 42 | 72 | 38 | 0.58 |
| 42KWD08 | 42 | 80 | 38 | 0.82 |
| 43KWD02 | 43 | 76 | 40 | 0.82 |
| 43KWD04 | 43 | 77 | 38 | 0.81 |
| 45KWD04 | 45 | 77 | 50 | 0.89 |
| 45KWD03 | 45 | 78 | 37 | 0.73 |
| 45KWD05 | 45 | 80 | 50 | 1.02 |
| 46KWD04 | 46 | 77 | 41 | 0.84 |
| 46KWD03 | 46 | 78 | 49 | 0.97 |
| EP47KWD01 | 47 | 82 | 57.5 | 1.1 |
