NUP 2307 EMC3 Cylindrical Roller Bearings
MVPS

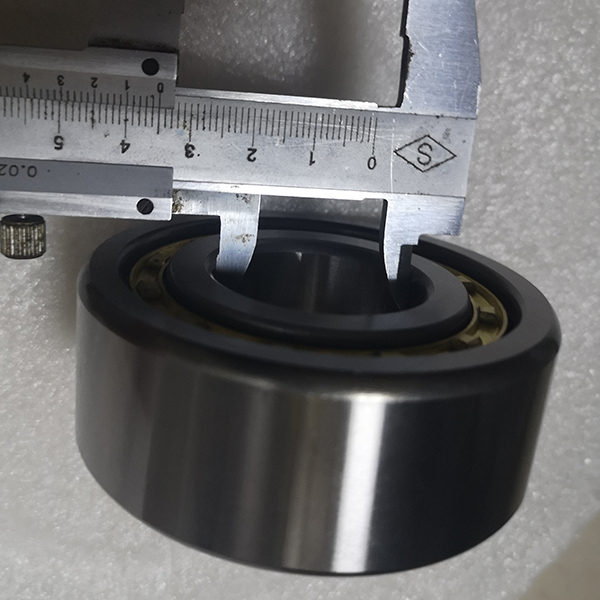

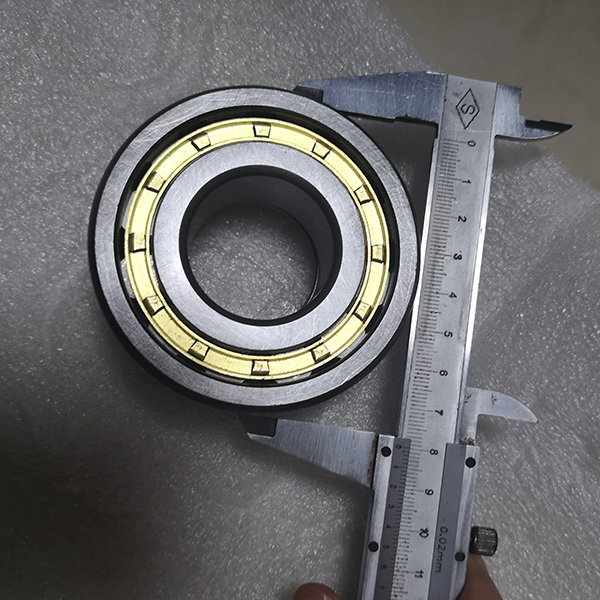

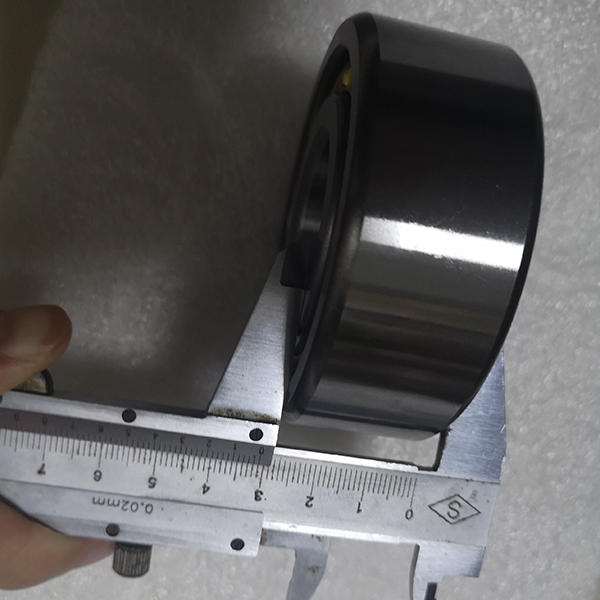

NUP 2307 EMC3 Bearing Specification :
Material :Chrome steel +copper cage
Dimension :
Inner diameter :35mm
Outer diameter:80mm
Height :31mm
Product Name | Cylindrical roller bearings |
Prefix | N NU NJ NUP |
Suffix | M ECM ECP ECJ MA MB ML MP ECML ECMA ECMB ECMP |
Application :
Motors, machine tool spindles, internal combustion engines, generators, rolling mills, vibrating screens, etc.
We Can Produce Different Type of Cylindrical Roller Bearing:
Bearing No. | Boundary dimensions (mm) | Basic load ratings (KN) | Weight KG | |||
d | D | B | Cr | C0r | ||
NUP205EM | 25 | 52 | 15 | 29300 | 27700 | 0.155 |
NUP2205EM | 52 | 18 | 35000 | 34500 | 0.184 | |
NUP305EM | 62 | 17 | 41500 | 37500 | 0.279 | |
NUP2305EM | 62 | 24 | 57000 | 56000 | 0.384 | |
NUP206EM | 30 | 62 | 16 | 39000 | 37500 | 0.236 |
NUP2206EM | 62 | 20 | 49000 | 5000 | 0.292 | |
NUP306EM | 72 | 19 | 53000 | 5000 | 0.41 | |
NUP2306EM | 72 | 27 | 74000 | 77500 | 0.586 | |
NUP207EM | 35 | 72 | 17 | 50500 | 50000 | 0.341 |
NUP2207EM | 72 | 23 | 61500 | 65500 | 0.458 | |
NUP307EM | 80 | 21 | 66500 | 65500 | 0.547 | |
NUP2307EM | 80 | 31 | 93000 | 101000 | 0.809 | |
NUP208EM | 40 | 80 | 18 | 55500 | 55500 | 0.43 |
NUP2208EM | 80 | 23 | 72500 | 77500 | 0.548 | |
NUP308EM | 90 | 23 | 83000 | 84500 | 0.751 | |
NUP2308EM | 90 | 33 | 114000 | 81500 | 1.08 | |
NUP209EM | 45 | 85 | 19 | 63000 | 122000 | 0.492 |
NUP2209EM | 85 | 23 | 76000 | 66500 | 0.595 | |
NUP309EM | 100 | 25 | 97500 | 84500 | 1.01 | |
NUP2309EM | 100 | 36 | 137000 | 98500 | 1.46 | |
NUP210EM | 50 | 90 | 20 | 69000 | 153000 | 0.564 |
NUP2210EM | 90 | 23 | 83500 | 76500 | 0.642 | |
NUP310EM | 110 | 27 | 110000 | 97000 | 1.32 | |
NUP2310EM | 110 | 40 | 163000 | 113000 | 1.94 | |
NUP211EM | 55 | 100 | 21 | 86500 | 187000 | 0.736 |
NUP2211EM | 100 | 25 | 101000 | 98500 | 0.881 | |
NUP311EM | 120 | 29 | 137000 | 122000 | 1.67 | |
NUP2311EM | 120 | 43 | 201000 | 233000 | 2.48 |
NUP 2307 EMC3 Bearing Specification :
Material :Chrome steel +copper cage
Dimension :
Inner diameter :35mm
Outer diameter:80mm
Height :31mm
Product Name | Cylindrical roller bearings |
Prefix | N NU NJ NUP |
Suffix | M ECM ECP ECJ MA MB ML MP ECML ECMA ECMB ECMP |
Application :
Motors, machine tool spindles, internal combustion engines, generators, rolling mills, vibrating screens, etc.
We Can Produce Different Type of Cylindrical Roller Bearing:
Bearing No. | Boundary dimensions (mm) | Basic load ratings (KN) | Weight KG | |||
d | D | B | Cr | C0r | ||
NUP205EM | 25 | 52 | 15 | 29300 | 27700 | 0.155 |
NUP2205EM | 52 | 18 | 35000 | 34500 | 0.184 | |
NUP305EM | 62 | 17 | 41500 | 37500 | 0.279 | |
NUP2305EM | 62 | 24 | 57000 | 56000 | 0.384 | |
NUP206EM | 30 | 62 | 16 | 39000 | 37500 | 0.236 |
NUP2206EM | 62 | 20 | 49000 | 5000 | 0.292 | |
NUP306EM | 72 | 19 | 53000 | 5000 | 0.41 | |
NUP2306EM | 72 | 27 | 74000 | 77500 | 0.586 | |
NUP207EM | 35 | 72 | 17 | 50500 | 50000 | 0.341 |
NUP2207EM | 72 | 23 | 61500 | 65500 | 0.458 | |
NUP307EM | 80 | 21 | 66500 | 65500 | 0.547 | |
NUP2307EM | 80 | 31 | 93000 | 101000 | 0.809 | |
NUP208EM | 40 | 80 | 18 | 55500 | 55500 | 0.43 |
NUP2208EM | 80 | 23 | 72500 | 77500 | 0.548 | |
NUP308EM | 90 | 23 | 83000 | 84500 | 0.751 | |
NUP2308EM | 90 | 33 | 114000 | 81500 | 1.08 | |
NUP209EM | 45 | 85 | 19 | 63000 | 122000 | 0.492 |
NUP2209EM | 85 | 23 | 76000 | 66500 | 0.595 | |
NUP309EM | 100 | 25 | 97500 | 84500 | 1.01 | |
NUP2309EM | 100 | 36 | 137000 | 98500 | 1.46 | |
NUP210EM | 50 | 90 | 20 | 69000 | 153000 | 0.564 |
NUP2210EM | 90 | 23 | 83500 | 76500 | 0.642 | |
NUP310EM | 110 | 27 | 110000 | 97000 | 1.32 | |
NUP2310EM | 110 | 40 | 163000 | 113000 | 1.94 | |
NUP211EM | 55 | 100 | 21 | 86500 | 187000 | 0.736 |
NUP2211EM | 100 | 25 | 101000 | 98500 | 0.881 | |
NUP311EM | 120 | 29 | 137000 | 122000 | 1.67 | |
NUP2311EM | 120 | 43 | 201000 | 233000 | 2.48 |
