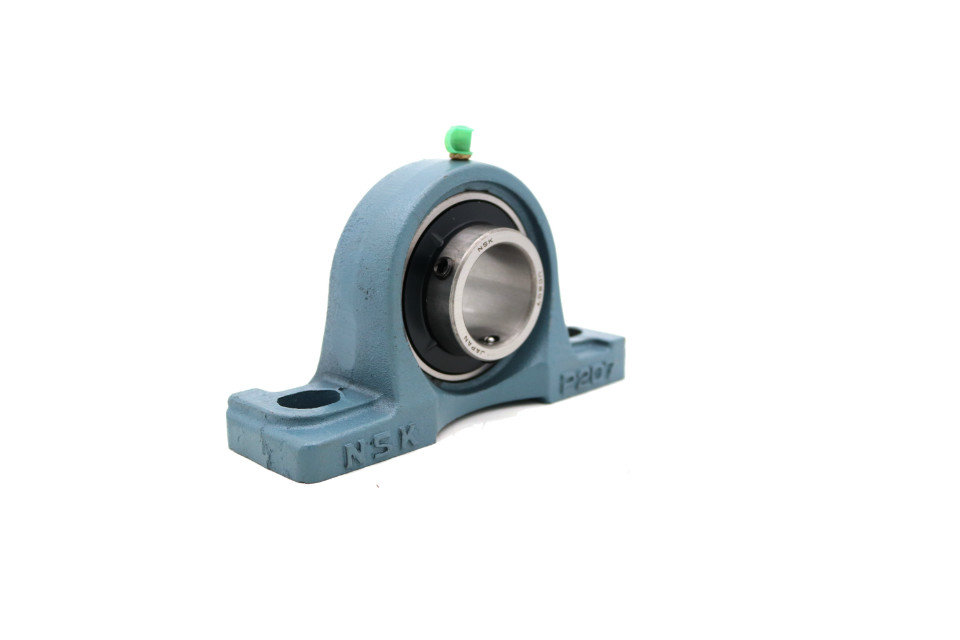

PILLOW BLOCK BEARING

Insert Bearing material :Chrome steel Gcr15 or stainless steel

Housing material : Cast iron

Dimension:

Shaft Dia (d):25 mm

Height (H):33.3mm

Length (L):127mm

Bolt Size:M10

Weight :0.7 kg

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • UCP204 PILLOW BLOCK BEARING

Pillow block bearings are housing combined with radial insert bearing. Most of the outer spherical bearings are made of a spherical surface The structure of bearing unit are various, and the versatility and interchangeability are good.

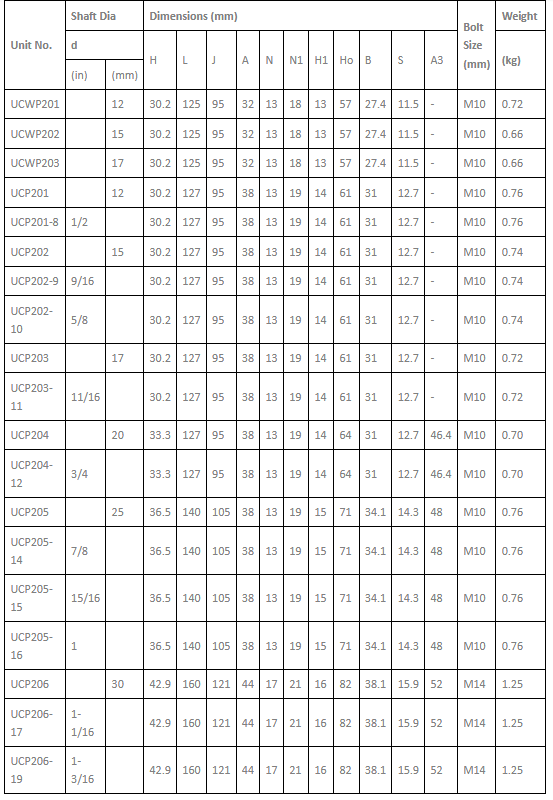

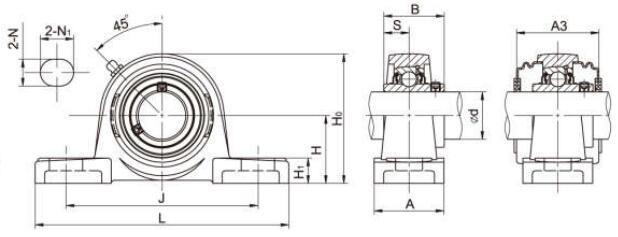

Mount Bearing UCP204 Specification :

QQ图片20211029134323QQ图片20211029134705

We also can provide other brand bearing housing such as ASAHI Pillow Block Bearing.



UCP204 Bearing Housing Have Widely Applications:


Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:

1)Agriculture,

2)Light textile,

3)Mining,

4)Food &beverage,

5)Pharmaceutical,

6)Chemical processing,

7)Printing,

8)Dyeing,

9)Various kinds of conveying and rolling devices.

20191024081358_68959
