Home » Products » RCB-061014 Roller Clutch and Bearing

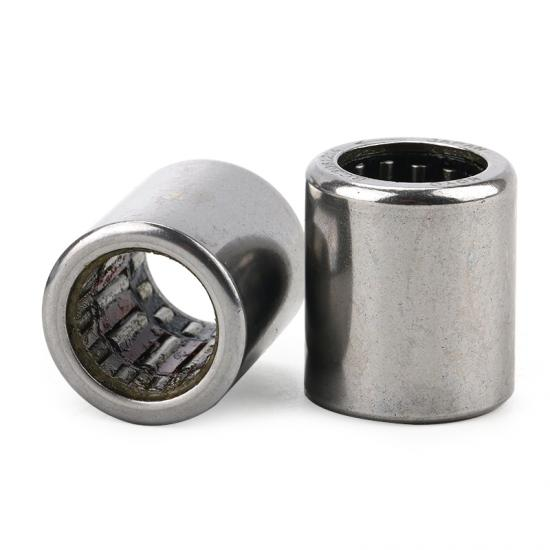

RCB-061014 Roller Clutch and Bearing

RCB-061014 Roller Clutch Bearing Size 9.525*15.875*22.22mm,we have this bearings in stock ,free sample can be provide in advance.
Availability:
Quantity:
  • RCB-061014 Roller Clutch Bearing
  • MVPS

RCB-061014 Roller Clutch Bearing Specification:

d: 9.525mm

D: 15.875mm

B: 22.22mm

M: 0.015kg

Basic dynamic load rating: 675KN

Basic static load rating: 91KN

Oil Rotate speed: 2000 r/min

Grease Rotate speed: 1500r/min



RCB Needle roller bearings NO.:



Bearing No. Mass Dimension
Fw D C Rotating Moment
RC(RCB) One Way Direction Needle Roller Bearing/Clutch
RC02 2 3.175 7.15 6.35 1.5
RC040708 3.5 6.35 11.112 12.7 1.9
RC040708-FS 3.5 6.35 11.112 12.7 1.9
RC061008 4.7 9.525 15.875 12.7 4.83
RC061008-FC 4.7 9.525 15.875 12.7 4.83
RC081208 9.2 12.7 19.05 12.7 7.9
RC081208-FS 9.2 12.7 19.05 12.7 7.9
RC101410 14.5 15.875 22.225 15.88 15.4
RC101410-FC 14.5 15.875 22.225 15.88 15.4
RC121610 17 19.05 25.4 15.88 20.9
RC121610-FS 17 19.05 25.4 15.88 20.9
RC162110 16.2 25.4 33.338 15.88 45
RC162110-FC 16.2 25.4 33.338 15.88 45
RCB061014 12 9.525 15.875 22.22 4.83
RCB061014-FS 12 9.525 15.875 22.22 4.83
RCB081214 16 12.7 19.05 22.22 7.9
RCB081214-FC 16 12.7 19.05 22.22 7.9
RCB101416 21.3 15.875 22.225 25.4 15.4
RCB101416-FS 21.3 15.875 22.225 25.4 15.4
RCB121616 26.5 19.05 25.4 25.4 20.9
RCB121616-FC 26.5 19.05 25.4 25.4 20.9
RCB162117 44.8 25.4 33.338 26.99 45
RCB162117-FS 44.8 25.4 33.338 26.99 45




Needle bearings RCB061014 RCB-061014-FS Roller Clutch and Bearing use a roller style rolling element to reduce friction of rotating surface and are more compact as the clearance has been reduced. Typically, the needle bearings consist of inner race, needle shaft, which orients the needle roller and an outer race. Needle bearings are primarily used in engine components, such as rocker arm pivots, pumps, compressors and transmissions.



And we have below items in stock :


Bearings No. Dimension(mm)
RCB-061014 9.525 *15.875 *22.22
RCB-081214 12.7*19.05*22.22
RCB-101416 15.875*22.225*25.4
RCB-121616 19.05*25.4*25.4
RCB-162117 25.4*33.338 *27
RC-040708 6.35*11.112*12.7
RC-061008 9.525*15.875 *12.7
RC-081208 12*19*12
RC-101410 15.875*22.225*15.88
RC-121610 19.05*25.4 *15.88
RC-162110 25.4 *33.338*15.88
FC-8 8*14*12


Needle bearings RCB061014 RCB-061014-FS Roller Clutch and Bearing use a roller style rolling element to reduce friction of rotating surface and are more compact as the clearance has been reduced. Typically, the needle bearings consist of inner race, needle shaft, which orients the needle roller and an outer race. Needle bearings are primarily used in engine components, such as rocker arm pivots, pumps, compressors and transmissions.
