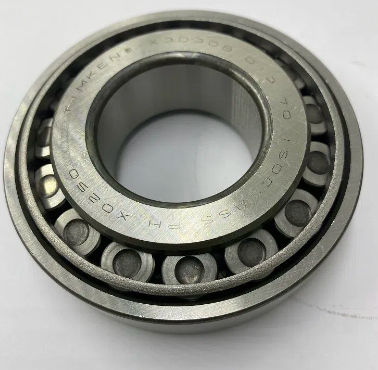

TIMKEN 32319 Tapered Roller Bearing
TIMKEN
TIMKEN 32319 32320 32321 32322 32324 tapered roller bearing
Technical parameter:
| New items | Old items | Specifications(dxDxB) | Weight/kg |
| Timken 32319 | 7619E | 95×200×71.5 | 10.000 |
| Timken 32320 | 7620E | 100×215×77.5 | 13.200 |
| Timken 32321 | 7621E | 105×225×81.5 | 14.400 |
| Timken 32322 | 7622E | 110×240×84.5 | 18.000 |
| Timken 32324 | 7624E | 120×260×90.5 | 22.400 |
TIMKEN tapered roller bearing Structural features
1.TIMKEN 32319 bearing ,the projection lines of all conical surfaces meet at the same point on the axis of the bearing. This design makes tapered roller bearings particularly suitable for composite (radial and axial) loads.
2.TIMKEN 32320 bearing,tapered roller bearings are usually of the separate type, that is, the tapered inner ring component composed of the inner ring with roller and cage assembly can be connected with the tapered outer ring.
3.TIMKEN 32321 bearing ,combined and double-row tapered roller bearings, when radial load acts on the tapered roller bearing, the internal contact angle will induce an axial load.
TIMKEN 32319 32320 32321 32322 32324 tapered roller bearing
Technical parameter:
| New items | Old items | Specifications(dxDxB) | Weight/kg |
| Timken 32319 | 7619E | 95×200×71.5 | 10.000 |
| Timken 32320 | 7620E | 100×215×77.5 | 13.200 |
| Timken 32321 | 7621E | 105×225×81.5 | 14.400 |
| Timken 32322 | 7622E | 110×240×84.5 | 18.000 |
| Timken 32324 | 7624E | 120×260×90.5 | 22.400 |
TIMKEN tapered roller bearing Structural features
1.TIMKEN 32319 bearing ,the projection lines of all conical surfaces meet at the same point on the axis of the bearing. This design makes tapered roller bearings particularly suitable for composite (radial and axial) loads.
2.TIMKEN 32320 bearing,tapered roller bearings are usually of the separate type, that is, the tapered inner ring component composed of the inner ring with roller and cage assembly can be connected with the tapered outer ring.
3.TIMKEN 32321 bearing ,combined and double-row tapered roller bearings, when radial load acts on the tapered roller bearing, the internal contact angle will induce an axial load.
