305806C Cam Roller Bearing

305806 C-2Z Crowned Yoke Roller Bearing Description :

Type:Cam Roller Bearing

Bearings No.305806C-2Z ,LR52062Z

Seal:Can with Rubber seal or two side metal shields



Availability:
Quantity:
  • 305806C-2Z ,LR52062Z
  • MVPS

305806 C-2Z Crowned Yoke Roller Bearing Description :

Type:Cam Roller Bearing

Bearings No.305806C-2Z ,LR52062Z

Seal:Can with Rubber seal or two side metal shields

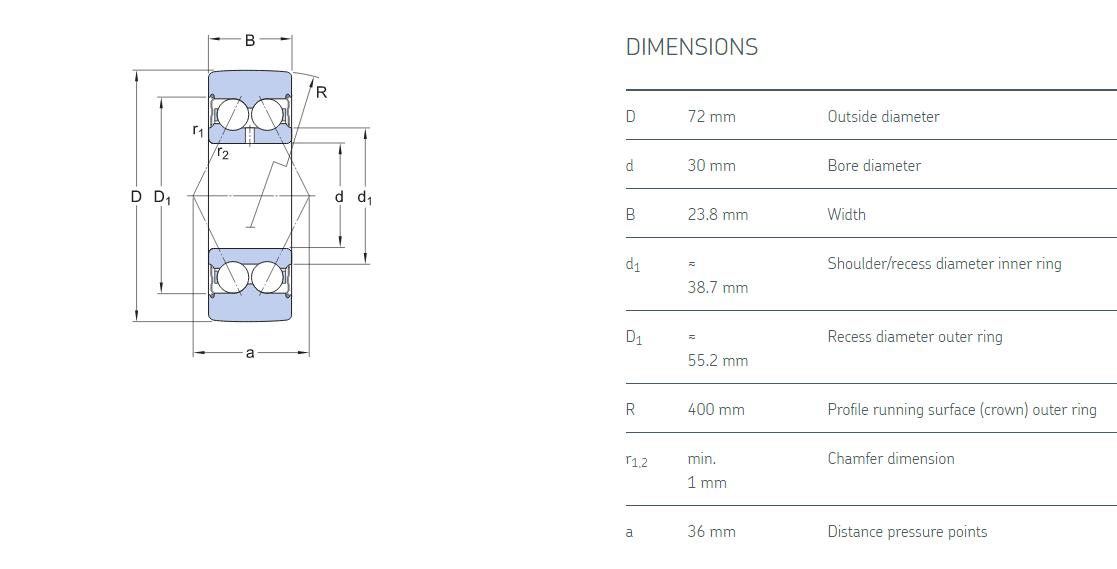

Dimension :

Inner diameter :30mm

Outer diameter:72mm

Width :23.8mm



Basic Load Ratings:


Dynamic:27,6kN

Static:18,6kN

Limiting speed:5,000 r/min

Feature : with crowned runner surfaceQQ图片20211220114503


QQ图片20211220114134QQ图片20211220114124

305806C-2Z SKF Double Row Cam Roller 30x72x23.8

Double Row Cam Rollers are based on double row angular contact ball bearings in the 32 dimension series and have a 30 degree contact angle. They are supplied greased and are fitted with metal shields both sides which extend into a recess on the inner ring.

This bearing has a crowned outer ring
