Home » Products » TRACK ROLLER BEARING » CF5 Cam Follower Bearing

CF5 Cam Follower Bearing

CF5 Track Roller Bearings and Cam Follower Bearings Specification:



Material : Chrome steel Gcr15

Dimension :5*13*9mm

Availability:
Quantity:
  • CF5 Track Roller Bearings
  • MVPS

CF5 Track Roller Bearings and Cam Follower Bearings Specification:


Material : Chrome steel Gcr15

Dimension :5*13*9mm

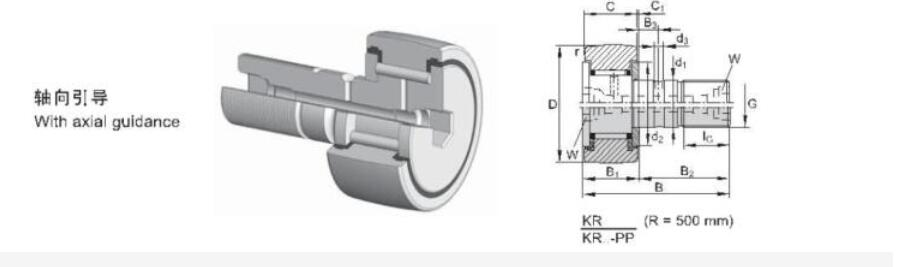

QQ图片20211214151156

cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems,etc

QQ图片20211214151031 QQ图片20211214151023

We can produce other Stud Type Track Rollers Bearing

CF KR CAM FOLLOWER SPECIFICATIONS
Model Weight d D C B1 B2 G G1
No Seal Reference model (gram) mm mm mm mm mm mm
CF 3 KR10 4.5 3 10 7 17 9 M3X0.5 5
CF 4 KR12 7.5 4 12 8 20 11 M4X0.7 6
CF 5 KR13 10.5 5 13 9 23 13 M5X0.8 7.5
CF 6 KR16 18.5 6 16 11 28 16 M6X1 8
CF 8 KR19 28.5 8 19 11 32 20 M8X1.25 10
CF10 KR22 45 10 22 12 36 23 M10X1.25 12
CF10-1 KR26 60 10 26 12 36 23 M10X1.25 12
CF12 KR30 95 12 30 14 40 25 M12X1.5 13
CF12-1 KR32 105 12 32 14 40 25 M12X1.5 13
CF16 KR35 170 16 35 18 52 32.5 M16X1.5 17
CF18 KR40 250 18 40 20 58 36.5 M18X1.5 19
CF20 KR47 460 20 47 24 66 40.5 M20X1.5 21
CF20-1 KR52 385 20 52 29 66 40.5 M20X1.5 21
CF24 KR62 815 24 62 29 80 49.5 M24X1.5 25
CF24-1 KR72 1,140 24 72 29 80 49.5 M24X1.5 25
CF30 KR80 1,870 30 80 35 100 63 M30X1.5 32
CF30-1 KR85 2.03 30 85 35 100 63 M30X1.5 32
CF30-2 KR90 2,220 30 90 35 100 63 M30X1.5 32

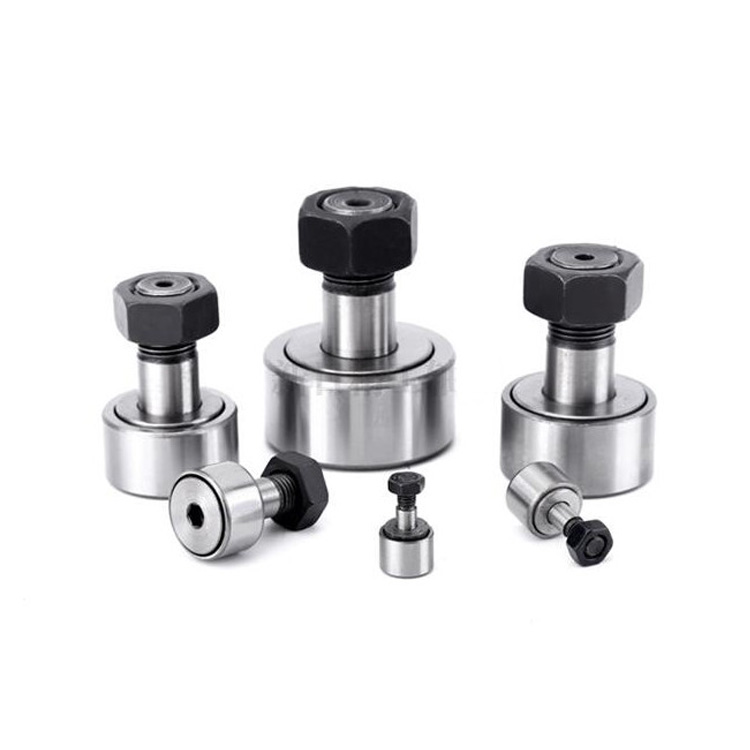

QQ图片20211214151302


Micheal is a professional supplier and exporter specializing in bearings and bearing solutions. The company is located in Tianjin, one of the largest
seaports in northern China.......
