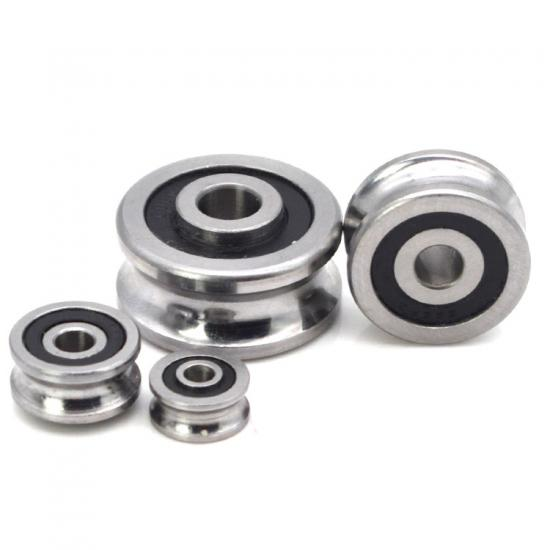

LV20/8 2RS V Groove Track Roller Bearing
MVPS

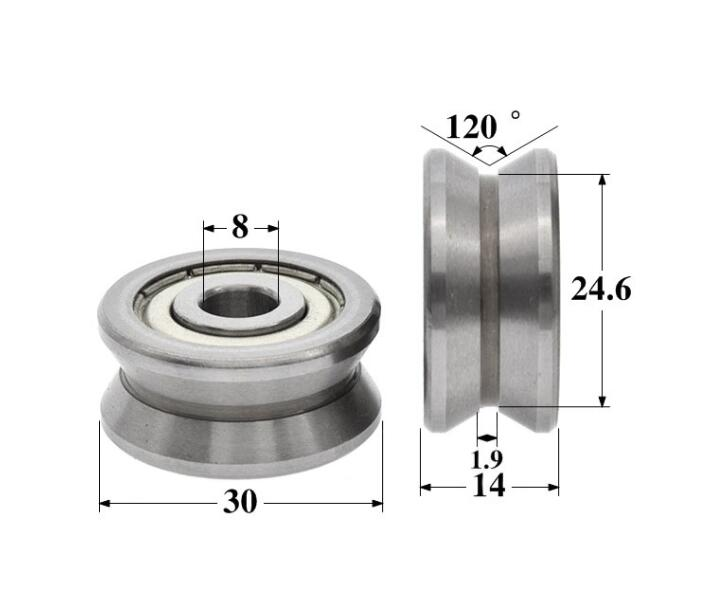

LV20/8ZZ LV20/8-2RS V Groove Guide Roller Specification:
| Model Numbe | LV20/8ZZ |
| Dimension: | 8mmx30mmx14mm |
| Structures | Double Row Ball Bearings |
| Our Rings | V Groove; 120 degree |
| Material: | Chrome Steel /GCr15/ AISI420/AISI440 |
| Quality: | ABEC1 ABEC3 |
| Vibration Level: | V1;V2 |
| Noise Level: | Z1;Z2 |
| Clearance: | C0 C3 C2 C5 |
| Shields: | Rubber seals ; Steel Shield |
| Packing: | Plastic Tube packing |
| Application: | Linear guide machinery; linear motion track rollers; guide railway |
Track Roller Bearings LV Series Bearing No.:
| Track Roller No. | Weight ≈(g) | Dimensions (mm) | Load Ratings | ||||||||
| dw | d | D | b | C | A | α | rs | Cw (KN) | Cow(KN) | ||
| LV 20/7 ZZ | 17 | 10 | 7 | 22 | 11 | 11 | 14.5 | 120 | 0.3 | 3.78 | 2.05 |
| LV 20/8 ZZ | 49 | 10 | 8 | 30 | 14 | 14 | 18.1 | 120 | 0.3 | 5.13 | 2.67 |
| LV 202-38 ZZ | 87 | 10 | 15 | 38 | 17 | 17 | 22.25 | 120 | 0.5 | 8.47 | 5.37 |
| LV 202-40 ZZ | 110 | 10 | 15 | 40 | 18 | 18 | 22 | 120 | 0.5 | 8.47 | 5.37 |
| LV 201 ZZ | 130 | 20 | 12 | 41 | 20 | 20 | 28 | 120 | 0.3 | 8.47 | 5.37 |
| LV 201-14.2RS | 107 | 14 | 12 | 39.9 | 20.1 | 18 | 24 | 100 | 0.5 | 8.9 | 5 |
| LV 202-41 ZZ | 116 | 20 | 15 | 41 | 20 | 20 | 28 | 120 | 0.5 | 8.47 | 5.37 |
| LV 203 ZZ | 325 | 20 | 17 | 58 | 25 | 25 | 35 | 120 | 0.5 | 14.66 | 9.1 |
| LV 204-57 ZZ | 290 | 30 | 20 | 57 | 22 | 22 | 41 | 120 | 0.6 | 14.66 | 9.1 |
| LV 204-58 ZZ | 310 | 30 | 20 | 58 | 25 | 25 | 41 | 120 | 0.6 | 14.66 | 9.1 |
We also can Produce Various structure: WV,LV,V,LFR,LR,W Series
Sealed type: Z, ZZ, RS, 2RS, 2RS1, NPP, KDD, P, PP, N, NR
Material: GCr15,100Cr6,Chrome Steel,steel ,stainless steel
Model | Weight | Size (mm) | ||||
≈ (g) | dw | d | D | C | B | |
SG15 | 8 | 6 | 5 | 17 | 8 | 5.75 |
SG15-10 | 9 | 10 | 5 | 17 | 8 | 5.75 |
SG20 | 25 | 8 | 6 | 24 | 11 | 7.25 |
SG25 | 49 | 10 | 8 | 30 | 14 | 8.5 |
SG35 | 136 | 12 | 12 | 42 | 19 | 12.5 |
SG15N | 8 | 6 | 5 | 17 | 8 | 5.75 |
SG20N | 25 | 8 | 6 | 24 | 11 | 7.25 |
SG25N | 49 | 10 | 8 | 30 | 14 | 8.5 |
SG35N | 136 | 12 | 12 | 42 | 19 | 12.5 |
LV20/8ZZ LV20/8-2RS V Groove Guide Roller Specification:
| Model Numbe | LV20/8ZZ |
| Dimension: | 8mmx30mmx14mm |
| Structures | Double Row Ball Bearings |
| Our Rings | V Groove; 120 degree |
| Material: | Chrome Steel /GCr15/ AISI420/AISI440 |
| Quality: | ABEC1 ABEC3 |
| Vibration Level: | V1;V2 |
| Noise Level: | Z1;Z2 |
| Clearance: | C0 C3 C2 C5 |
| Shields: | Rubber seals ; Steel Shield |
| Packing: | Plastic Tube packing |
| Application: | Linear guide machinery; linear motion track rollers; guide railway |
Track Roller Bearings LV Series Bearing No.:
| Track Roller No. | Weight ≈(g) | Dimensions (mm) | Load Ratings | ||||||||
| dw | d | D | b | C | A | α | rs | Cw (KN) | Cow(KN) | ||
| LV 20/7 ZZ | 17 | 10 | 7 | 22 | 11 | 11 | 14.5 | 120 | 0.3 | 3.78 | 2.05 |
| LV 20/8 ZZ | 49 | 10 | 8 | 30 | 14 | 14 | 18.1 | 120 | 0.3 | 5.13 | 2.67 |
| LV 202-38 ZZ | 87 | 10 | 15 | 38 | 17 | 17 | 22.25 | 120 | 0.5 | 8.47 | 5.37 |
| LV 202-40 ZZ | 110 | 10 | 15 | 40 | 18 | 18 | 22 | 120 | 0.5 | 8.47 | 5.37 |
| LV 201 ZZ | 130 | 20 | 12 | 41 | 20 | 20 | 28 | 120 | 0.3 | 8.47 | 5.37 |
| LV 201-14.2RS | 107 | 14 | 12 | 39.9 | 20.1 | 18 | 24 | 100 | 0.5 | 8.9 | 5 |
| LV 202-41 ZZ | 116 | 20 | 15 | 41 | 20 | 20 | 28 | 120 | 0.5 | 8.47 | 5.37 |
| LV 203 ZZ | 325 | 20 | 17 | 58 | 25 | 25 | 35 | 120 | 0.5 | 14.66 | 9.1 |
| LV 204-57 ZZ | 290 | 30 | 20 | 57 | 22 | 22 | 41 | 120 | 0.6 | 14.66 | 9.1 |
| LV 204-58 ZZ | 310 | 30 | 20 | 58 | 25 | 25 | 41 | 120 | 0.6 | 14.66 | 9.1 |
We also can Produce Various structure: WV,LV,V,LFR,LR,W Series
Sealed type: Z, ZZ, RS, 2RS, 2RS1, NPP, KDD, P, PP, N, NR
Material: GCr15,100Cr6,Chrome Steel,steel ,stainless steel
Model | Weight | Size (mm) | ||||
≈ (g) | dw | d | D | C | B | |
SG15 | 8 | 6 | 5 | 17 | 8 | 5.75 |
SG15-10 | 9 | 10 | 5 | 17 | 8 | 5.75 |
SG20 | 25 | 8 | 6 | 24 | 11 | 7.25 |
SG25 | 49 | 10 | 8 | 30 | 14 | 8.5 |
SG35 | 136 | 12 | 12 | 42 | 19 | 12.5 |
SG15N | 8 | 6 | 5 | 17 | 8 | 5.75 |
SG20N | 25 | 8 | 6 | 24 | 11 | 7.25 |
SG25N | 49 | 10 | 8 | 30 | 14 | 8.5 |
SG35N | 136 | 12 | 12 | 42 | 19 | 12.5 |
