RM3-2RS V Groove Guide Bearing

VW3 RM3 Track Rollers  Bearing Specification :

Bearing No.:W3-2Z， RM3-2Z,RM3-2RS,W3-2RS

Groove Diameter: 90°

Inner Diameter: 12 mm

Outer Diameter: 45.72 mm

Inner Thickness: 15.88 mm

Outer Thickness: 15.88 mm

Weight: 0.13 kg

Seals: Metal shield,or rubber seals

Material : Chrome steel ,we also can provide with stainless steel

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • VW3 RM3 Track Rollers  Bearing

  • MVPS

VW3 RM3 Track Rollers  Bearing Specification :

Bearing No.:W3-2Z， RM3-2Z,RM3-2RS,W3-2RS

Groove Diameter: 90°

Inner Diameter: 12 mm

Outer Diameter: 45.72 mm

Inner Thickness: 15.88 mm

Outer Thickness: 15.88 mm

Weight: 0.13 kg

Seals: Metal shield,or rubber seals

Material : Chrome steel ,we also can provide with stainless steel

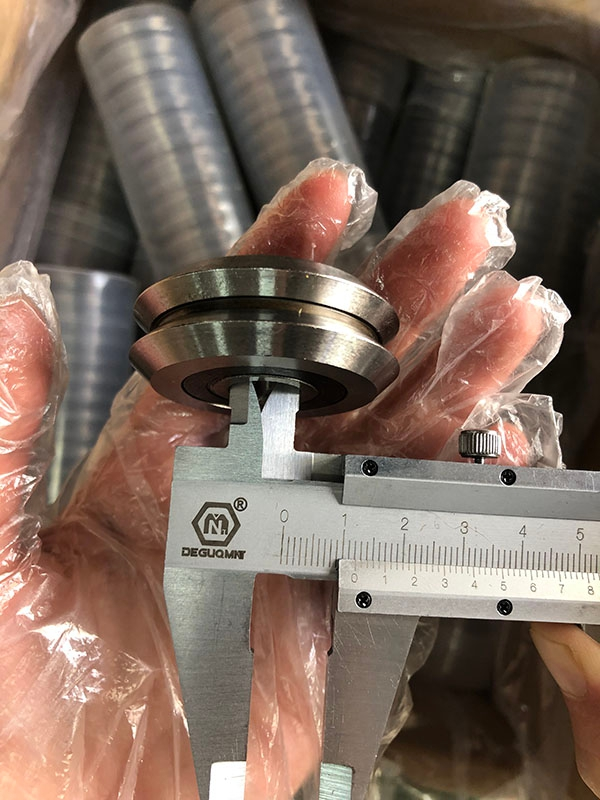

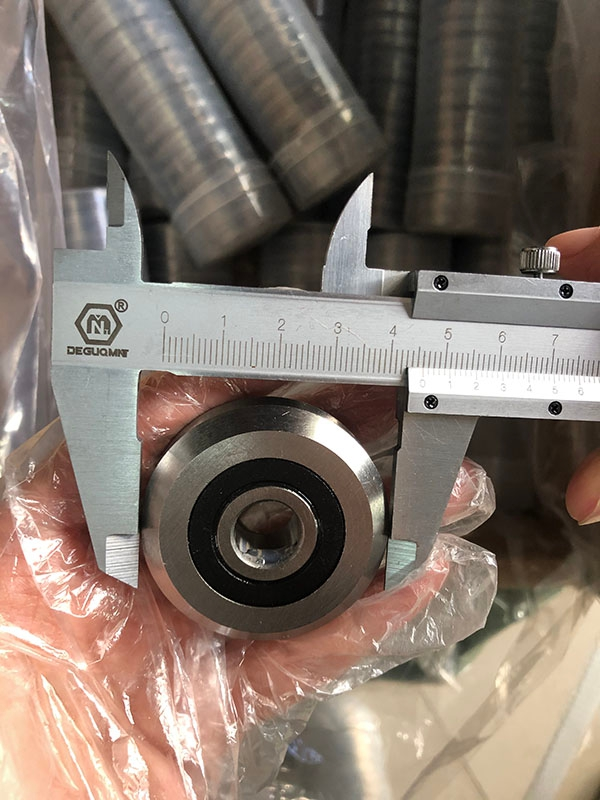

QQ图片20211214142037QQ图片20211214142046QQ图片20211214142053

We can Produce other SG Series Embroidery Bearing :
Model Mass dw d D C B

(g) (mm) (mm) (mm) (mm) (mm)
SG10 6 5 4 13 6 3.5*2
SG15 8 6 5 17 8 5.75
SG15-10 9 10 5 17 8 5.75
SG20 25 8 6 24 11 7.25
SG25 49 10 8 30 14 8.5
SG35 136 12 12 42 19 12.5
SG15N 8 6 5 17 8 5.75
SG20N 25 8 6 24 11 7.25
SG25N 49 10 8 30 14 8.5
SG35N 136 12 12 42 19 12.5


Sealed type: Z, ZZ, RS, 2RS, 2RS1, NPP, KDD, P, PP, N, NR

Material: GCr15,100Cr6,Chrome Steel,steel ,Stainless steel


We are Track Roller Bearing Manufacture ,we can produce WV,LV,V,LFR,LR,W Series Track Roller Bearing for you :


Designation


A1 A2 Chamfer r/min
Weight

Bore O.D. Width

mm Load

mm mm mm





D1 D B A1 A2 R/min Cw(KN) Cow(KN) Kg
W1 4.763 19.56 7.87 7.9. 11.86 0.3 2.2 1 11
W1X 4.763 19.56 7.87 7.93 11.86 0.3 2.2 1 11
W2 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5 38
W2X 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5 38
W3 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9 130
W3X 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9 130
W4 15 59.94 19.05 25.4 34.93 1 14.8 8.2 280
W4X 15 59.94 19.05 25.4 34.93 1 14.8 8.2 280
RM1ZZ 4.763 19.56 7.87 7.9. 11.86 0.3 2.2 1 11
RM1 2RS 4.763 19.56 7.87 7.93 11.86 0.3 2.2 1 11
RM2ZZ 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5 38
RM2 2RS 9.525 30.73 11.1 12.7 18.24 0.3 4.9 2.5 38
RM3ZZ 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9 130
RM3 2RS 12 45.72 15.88 19.05 26.98 0.6 9.4 4.9 130
RM4ZZ 15 59.94 19.05 25.4 34.93 1 14.8 8.2 280
RM4 2RS 15 59.94 19.05 25.4 34.93 1 14.8 8.2 280

QQ图片20211214141603
