Home » Products » TRACK ROLLER BEARING » SG15 U Groove Linear Guide Wheel

SG15 U Groove Linear Guide Wheel

Embroidery Machine Track Roller Bearing Specification :

Bearing No.:SG15-2RS,SG15-ZZ

Bearing Size: 5mm x 17mm x 8mm

Material : Chrome steel or stainless steel

Availability:
Quantity:
  • SG15 U Groove Linear Guide Wheel
  • MVPS

Embroidery Machine Track Roller Bearing Specification :

Bearing No.:SG15-2RS,SG15-ZZ

Bearing Size: 5mm x 17mm x 8mm

Material : Chrome steel or stainless steel

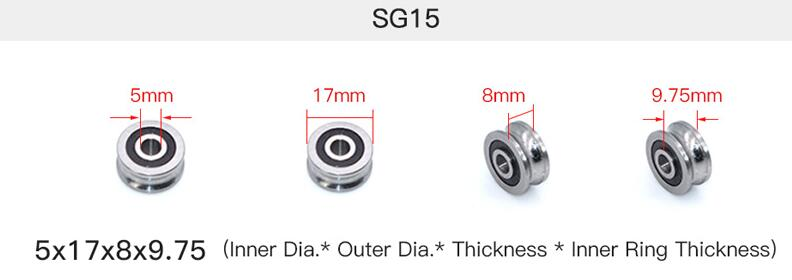

 QQ图片20211214153247

We also can Produce other Embroidery machine track roller bearing

SG Series Bearing :



SG10 5 4 13 6 3.5*2 16.08 5.9
0.3 0.85
SG15 6 5 17 8 5.75 20.46 8.6 0.5 0.3 0.95
SG15-10 10 5 17 8 5.75 25.5 8.6 1.2 0.3 0.95
SG15-1 7 5 17 8 5.75 20.46 8.6 1.5 0.3 0.95
SG20 8 6 24 11 7.25 28.62 11.1 0.7 0.3 1.75
SG20-1 9 6 24 11 7.25 28.62 11.1 0.5 0.3 1.75
SG25 10 8 30 14 8.5 35.77 13 0.7 0.3 2.7
SG25-1 5 8 27.6 14 10 30.77 13 1 0.3 2.7
SG35 12 12 42 19 12.5 48.93 18 1

QQ图片20211214153247

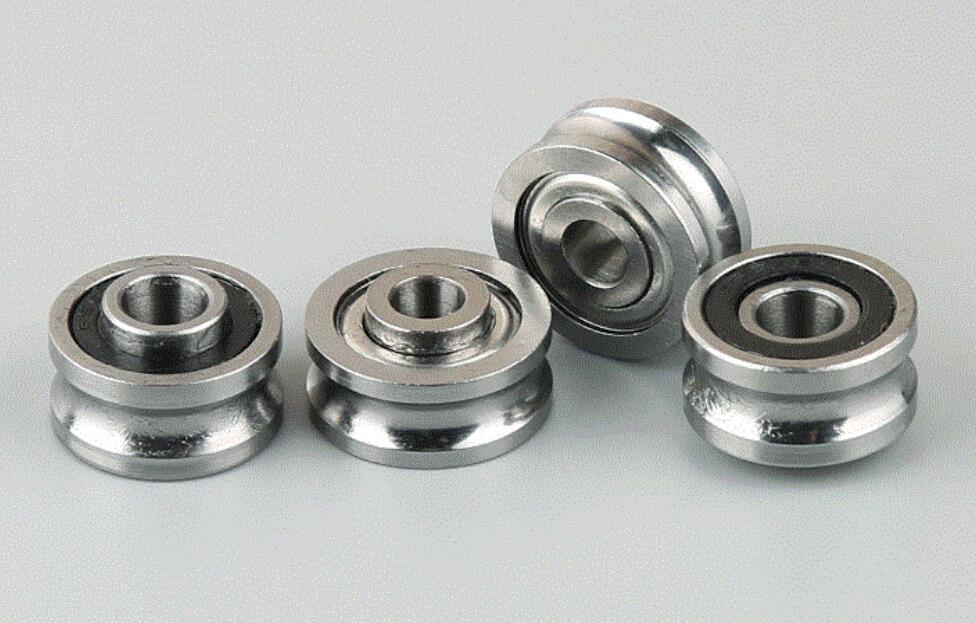

QQ图片20211214153532


V W series roller bearing according to difference of seal type can be divided into iron cover seal (no suffix, such as: W1) and rubber cover seal (name of X suffix, such as: W2X) two kinds

If using stainless steel material, the name will be the words with the SS, such as: W3SSX


W type guide roller bearing: W (RM) 0, 1 W (RM), W (RM) 2, 3 W (RM), W (RM) 4, W (RM) 0 x, W (RM) 1 x, 2 x W (RM), W (RM) 3 x, W

(RM) 4 x, W (RM) 4 xl, W4XXL, W (RM) 1 SSX, W (RM) 2 SSX, W (RM) 3 SSX, W (RM) 4 SSX

QQ图片20211214153750

LFR Series Bearing :


Guide roller type

Mass

Dimension (mm)

China

Germany

Italian

≈(g)

dw

d

D

C

B

A

LFR 50/4 NPP

-

-

3.5

5

4

13

6

7

8.04

LFR 50/5-4 KDD

LFR50/5KDD-4

R 50/5-4 ZZ

7.5

4

5

16

7

8

9

LFR 50/5-4 NPP

LFR50/5NPP-4

R 50/5-4 2RS

7.5

4

5

16

7

8

9

LFR 50/5 KDD

LFR50/5KDD

R 50/5-6 ZZ

8

6

5

17

7

8

10.5

LFR 50/5 NPP

LFR50/5NPP

R 50/5-6 2RS

8

6

5

17

7

8

10.5

LFR 50/8 KDD

LFR50/8KDD

R 50/8-6 ZZ

24

6

8

24

11

11

14

LFR 50/8 NPP

LFR50/8NPP

R 50/8-6 2RS

24

6

8

24

11

11

14

LFR 50/8-8 KDD



24

8

8

24

11

11

14.75

LFR 50/8-8 NPP



24

8

8

24

11

11

14.75

LFR 30/8 KDD



31

10

8

26.8

11

13

16.7

LFR 30/8 NPP



31

10

8

26.8

11

13

16.7

LFR 5201 KDD

LFR5201KDD

R 5201-10 ZZ

68

10

12

35

15.9

15.9

20.65

LFR 5201 NPP

LFR5201NPP

R 5201-10 2RS

68

10

12

35

15.9

15.9

20.65

LFR 5301 KDD

LFR5301KDD

R 5301-10 ZZ

130

10

12

42

19

19

24

LFR 5301 NPP

LFR5301NPP

R 5301-10 2RS

130

10

12

42

19

19

24

LFR 5301-20 KDD



125

20

12

42

19

19

28

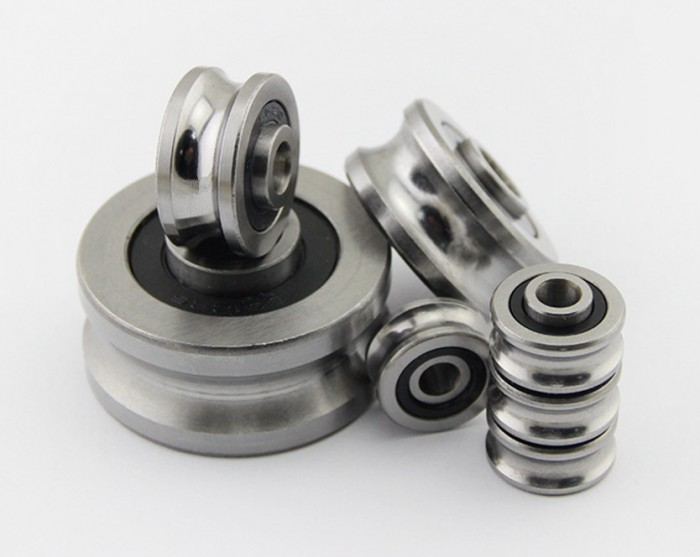

QQ图片20211214153738
