English T22 U Shaped Ball Bearing
MVPS

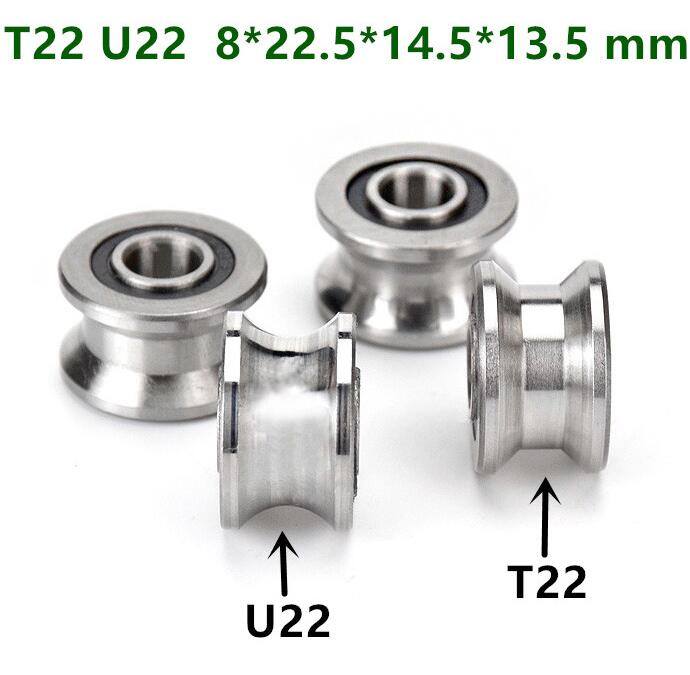

T22 U22 U groove bearing pulley roller steel ball bearings TU22 8*22.5*14.5*13.5
Track Rollers U22 T22 Bearing Specification:
| Name: | 8mm U groove bearing T22 TU22 |
| Model Numbe | T22,V22,U22，LGD12 |
| Dimension: | 8mmX22.5mmX14.5mm |
| Structures | Two Row U Groove Type ball bearings |
| Groove Angle | 60 degrees |
| Material: | Chrome Steel /GCr15/ AISI420/AISI440 |
| Quality: | ABEC1 ABEC3 |
| Vibration Level: | V1;V2 |
| Noise Level: | Z1;Z2 |
| Clearance: | C0 C3 C2 C5 |
| Shields: | Rubber seals ; Steel Shield |
| Packing: | Plastic Tube packing |
| Application: | Linear guide machinery; linear motion track rollers; |

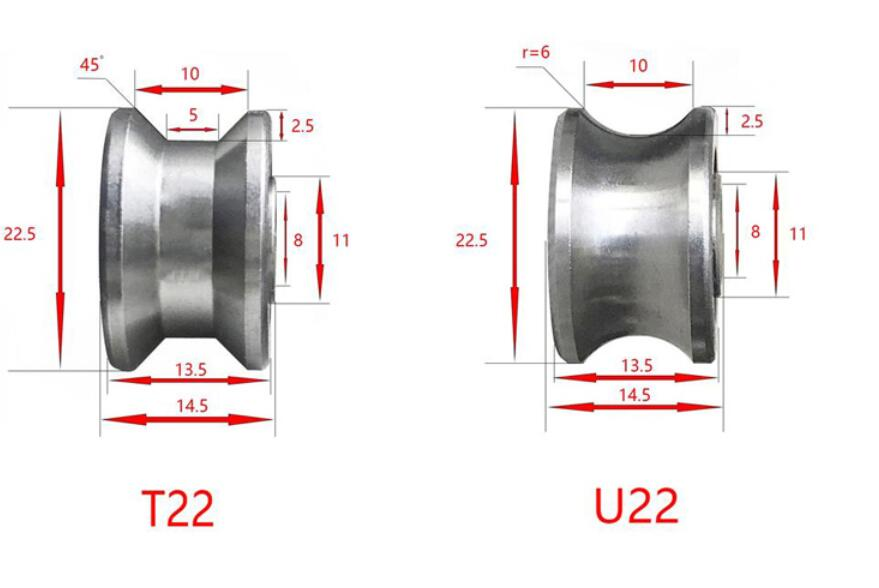

MVPS Bearings T22 U22 Bearing Dimension :
T22 U22 U groove bearing pulley roller steel ball bearings TU22 8*22.5*14.5*13.5
Track Rollers U22 T22 Bearing Specification:
| Name: | 8mm U groove bearing T22 TU22 |
| Model Numbe | T22,V22,U22，LGD12 |
| Dimension: | 8mmX22.5mmX14.5mm |
| Structures | Two Row U Groove Type ball bearings |
| Groove Angle | 60 degrees |
| Material: | Chrome Steel /GCr15/ AISI420/AISI440 |
| Quality: | ABEC1 ABEC3 |
| Vibration Level: | V1;V2 |
| Noise Level: | Z1;Z2 |
| Clearance: | C0 C3 C2 C5 |
| Shields: | Rubber seals ; Steel Shield |
| Packing: | Plastic Tube packing |
| Application: | Linear guide machinery; linear motion track rollers; |
MVPS Bearings T22 U22 Bearing Dimension :
